Scooters for Adults / Yedoo Alloy
Rodstr
You can take Rodstr to work or on holiday, and it will still weigh just under 7.5 kilograms. But don’t take it lightly! Even though it’s compact in size, the aluminium frame lets you ride fast. Rodstr comes with a double rear axle, fittings for mudguards and an integrated kickstand. And of course you can add plenty of handy and stylish accessories (front bags, baskets, bottles…). Rodstr always fits everywhere – on the pavement, in the boot of the car, or even into a busy day.
Yedoo Alloy
Dragstr
Availability:
Price:
399.90 EUR
Free shipping
- 5-year frame warranty only on our e-shop
- professional customer care
- directly from the manufacturer
Yedoo Alloy
Friday
Technical data
-
Max. 150 kg
-
Min. 150 cm
-
20"/16"
-
7,4 kg
-
12 +
-
Technical details
-
Product number12704 - Y30
-
Loading limit150 kg / 330 lb
-
Min. height of rider150 cm / 59 in
-
Weight (with/without kickstand)7,4 kg / 16.3 lb
-
Box size109,5 x 55,5 x 14,5 (43.1 x 21.9 x 5.7 in)
-
Box weight9,8 kg / 21.6 lb
-
FrameYEDOO alloy II.
-
ForkYEDOO alloy II.
-
StemZOOM alloy
-
HandlebarYEDOO Cross alloy
-
GripsErgonomic (with anti-rotation lock)
-
Bar endsOptional
-
HeadsetNECO alloy 1 1/8" threaded
-
Brake leversTEKTRO ML 520 alloy
-
Brakes (front/rear)"V" TEKTRO alloy /"V" TEKTRO alloy
-
Wheels20" / 16"
-
RimsHJC alloy double wall + CNC milled braking surface
-
HubsNOVATEC alloy
-
Hub width (front/rear)74 / 74 mm // 2.9 / 2.9 in
-
Preparation for using flat screws (front/ rear)Yes / Yes
-
BearingsIndustrial
-
Quick-release levers (front/rear)Yes / Yes
-
Tyres (front/rear)KENDA
-
Max. inflation (front/rear)4,6 bar / 4,6 bar
-
Preparation for bottle holder1x
-
KickstandOptional
-
Reflective elementsOn the front fork
-
Dimensions
-
-
[1] Length151 cm / 59.4 in
-
[2] Footboard40 cm / 15.7 in
-
[3] Handlebar height92 - 98 cm / 36.2 - 38.6 in
-
[4] Width of handlebars64 cm / 25.2 in
-
[5] Ride height (higher/lower position)*4,2 / 6,2 cm // 1.7 / 2.4 in
-
[6] Distance between footboard and ground (higher/lower position)*6,9 / 8,9 cm // 2.7 / 3.5 in
-
[7] Room for rider64 cm / 25.2 in
-
*Tolerance +-0.2 cm
-
Documents, standards and certificates
-
Manual
-
NormsČSN EN 14619
ČSN EN 14619
The regulation determines safety and functional requirements for wheel sport equipment particularly scooters aimed for users between 35kg and 100kg. The regulation examines riding properties, strength of construction, safety fixing components, shelf life and correct functionality of individual components such as brakes, bearings, rims, cases, pedals, etc. The regulation also introduces guidelines for preparation of user´s manuals, installation and treatment of these products.
-
Testing authoritySZÚ, s. p.
-
We don’t just brag that our products have performance and quality built to last – we’ve proved it by extending the full warranty to 3 YEARS! More
-
Yedoo frames are protected by registered EU industrial designs. The Yedoo brand, along with the trade names of each model, are trademark protected.
-
Change of technical parameters and components reserved.
-
Warnings and Safety Information:
For riding on roads and for riding in the dark, you must retrofit the scooter with safety features (lights, reflectors, etc.) in accordance with the regulations in force in your country. Follow the rules of the road, the principles of safe driving and wear personal protective equipment (helmet, cycling gloves, knee and elbow protectors, sturdy shoes, etc.). More information can be found in the Yedoo Manual (see download above). -
Manufacturer:
INTREA-PIKO, spol. s.r.o. | Radlická 80 | 150 00 Prague 5 | info@yedoo.cz
Manual_Yedoo_ALLOY_DRF_web.pdf
Technical and construction features

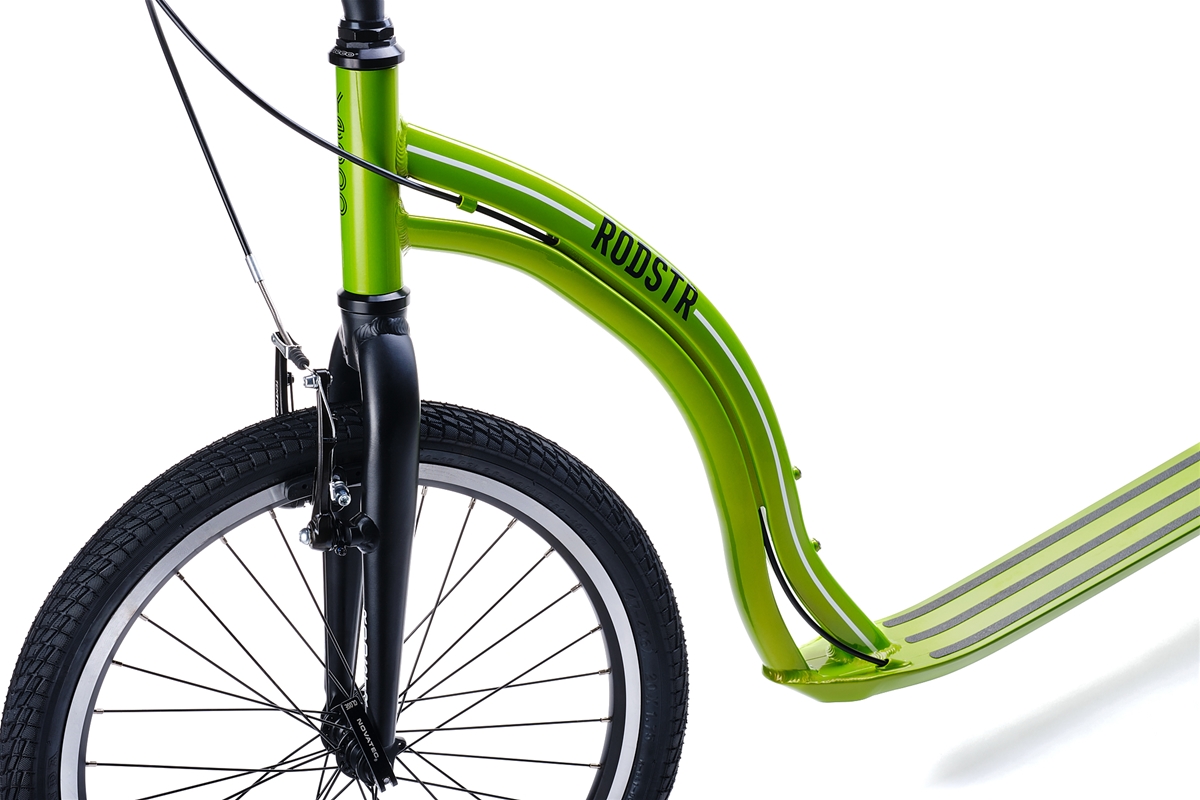

Originally designed light alloy frame
Extruded aluminium profiles resist lateral and vertical load easily. Thanks to them, the scooters are not only light, but also firm and have optimum solidity.
Adjustable handlebars
Ergonomic grips and Tektro brake levers

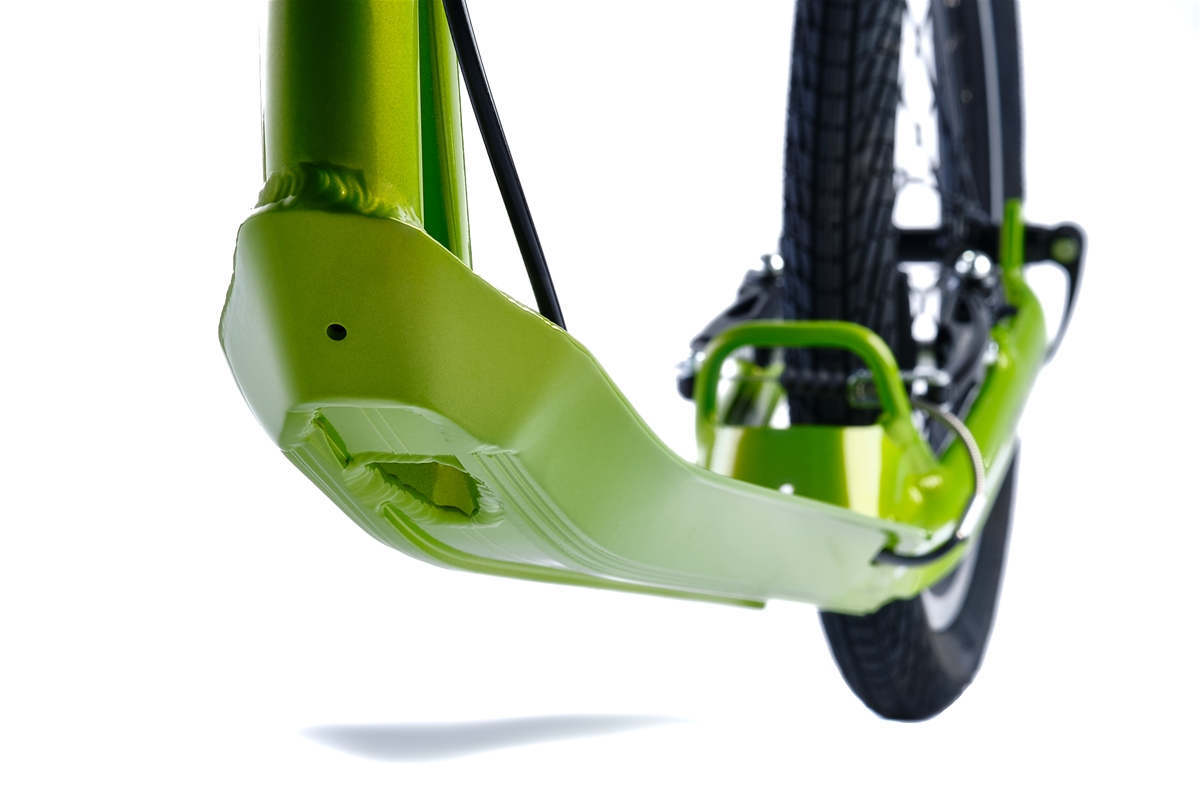

Slightly raised footboard

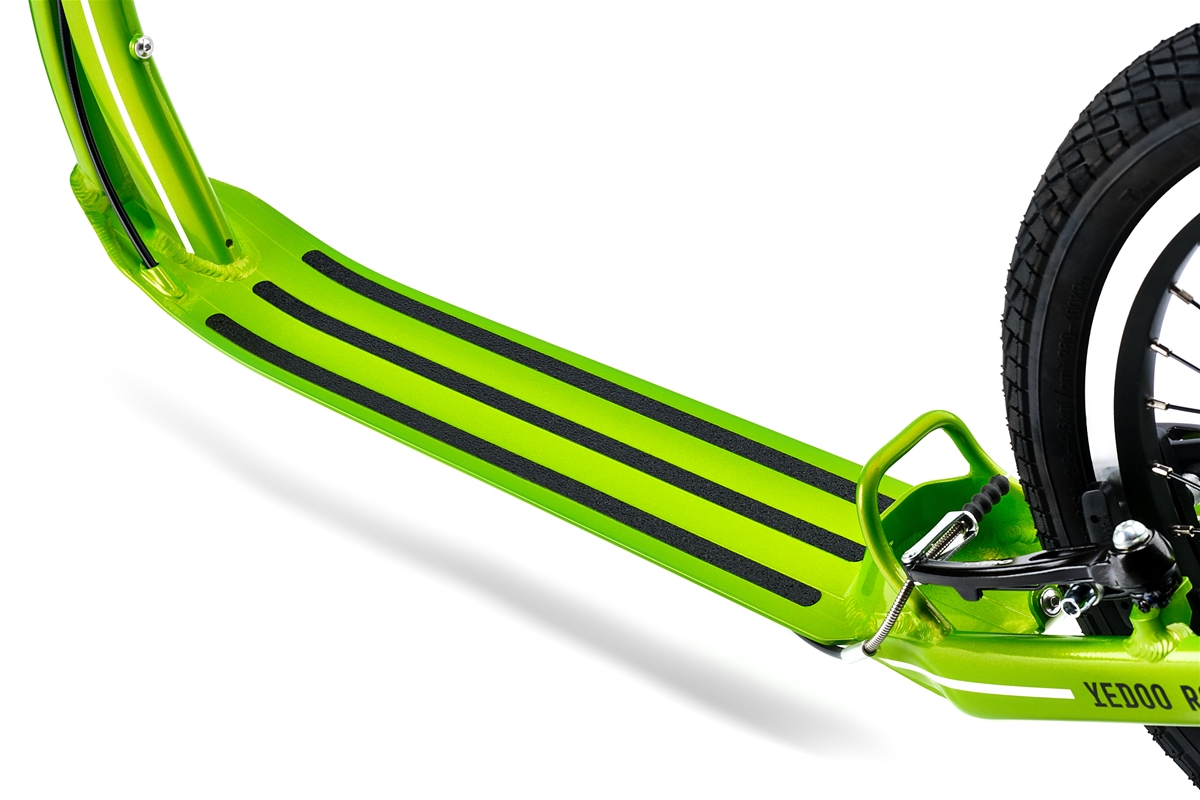

Footboard with anti-slip tapes

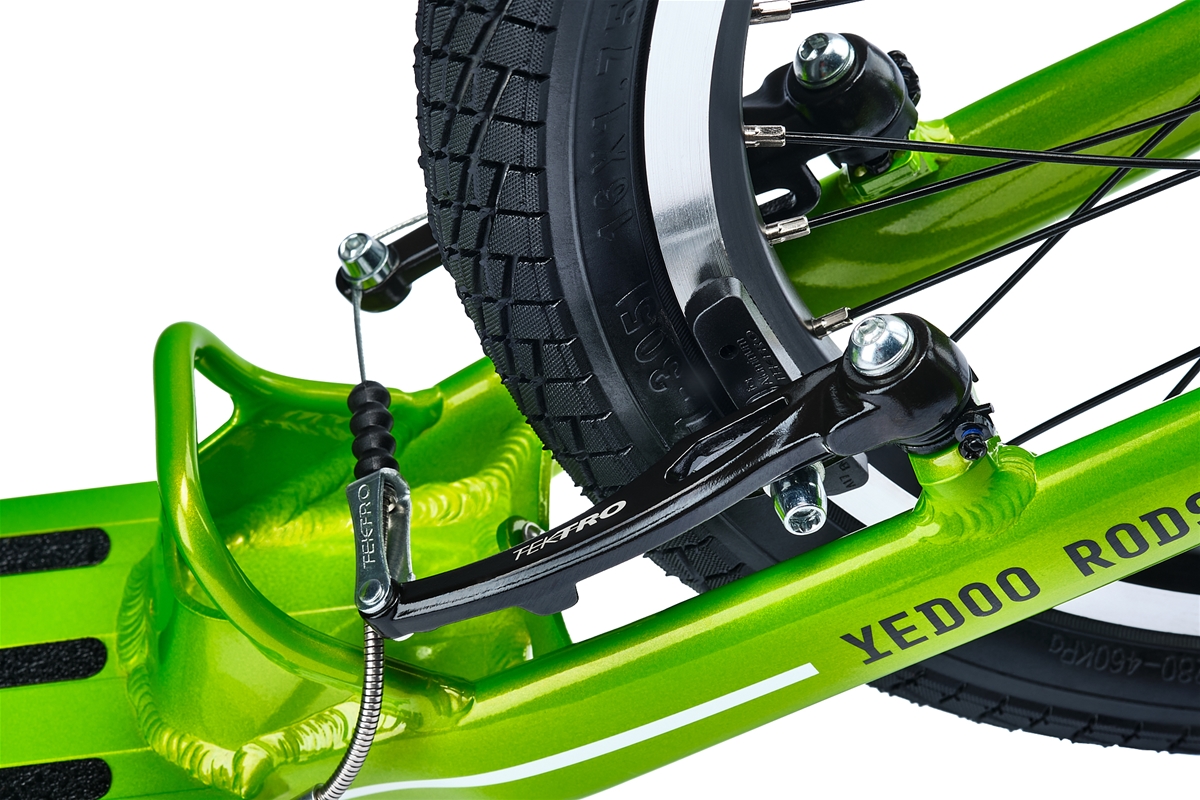

Tektro Alloy brakes and alloy double wall rims
