Scooters for Adults / Yedoo Numbers

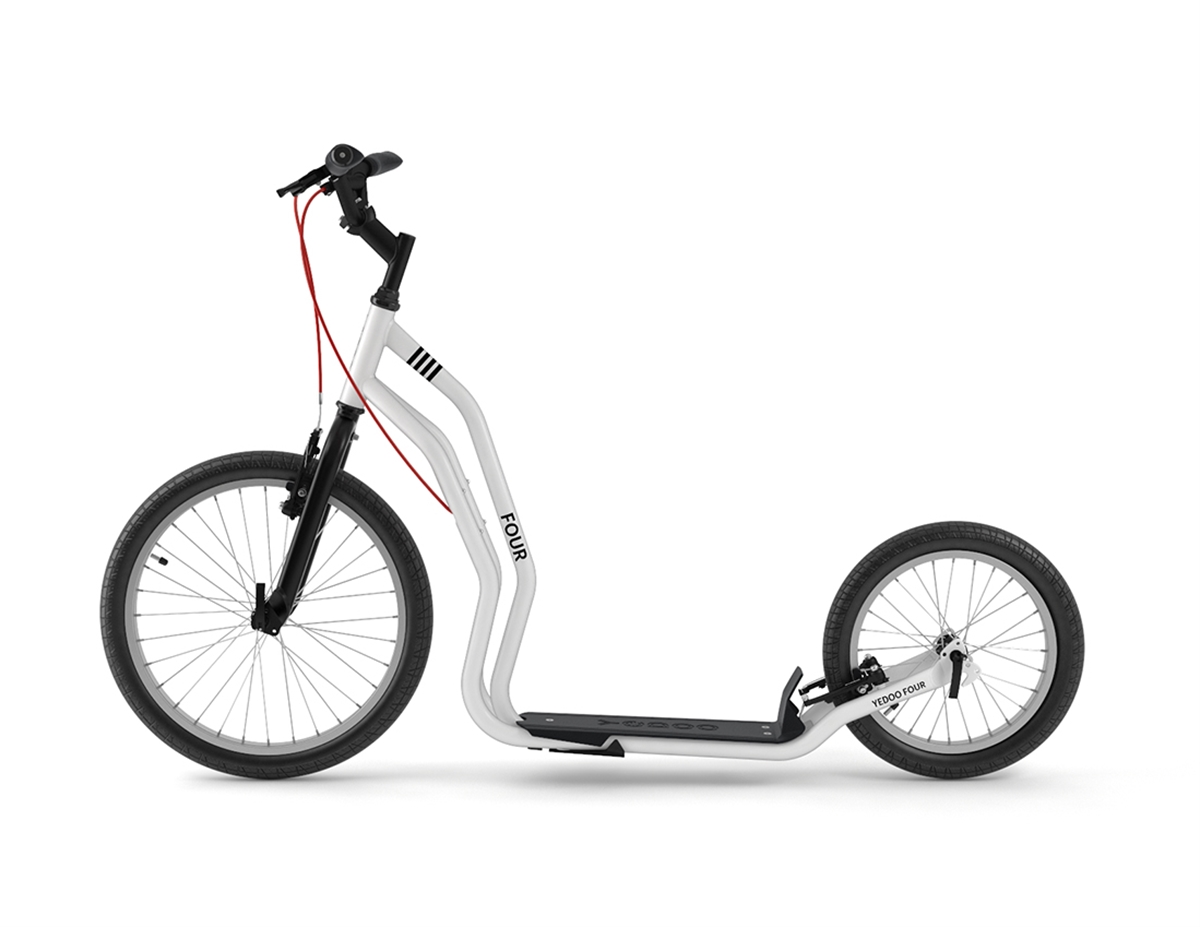

Four
Cool design, isn't it? But do not be misled, this scooter is built to manage everything. Number four will give you certainty as well as perhaps a drop of adrenalin, without any unnecessary embellishments. Reliable components and the entire technological superiority the twenty-years’ tradition of the Yedoo brand provide the nearly unbreakable machine with confident speed and agility in the city jungle – and 4x4 features, as soon as you get clear off the suburbs.
Yedoo Numbers
Four Y40
Availability:
Price:
259.90 EUR
Free shipping
- 5-year frame warranty only on our e-shop
- professional customer care
- directly from the manufacturer
Yedoo Numbers
Three
Technical data
-
Max. 150 kg
-
Min. 150 cm
-
20"/16"
-
10,2 kg
-
12 +
-
Technical details
-
Product number12208
-
Loading limit150 kg / 330 lb
-
Min. height of rider150 cm / 59 in
-
Weight (with/without kickstand)10,5 / 10,2 kg // 23.1 / 22.5 lb
-
Box size105 x 64 x 18 cm (41.3 x 25.2 x 7.1 in)
-
Box weight12,5 kg / 27.6 lb
-
FrameYEDOO Hi-ten steel
-
ForkYEDOO Hi-ten steel
-
StemZOOM steel
-
HandlebarYEDOO Cross Hi-ten steel
-
GripsErgonomic (with anti-rotation lock)
-
HeadsetFP steel 1 1/8" threaded
-
Brake levers2x SPARKLE alloy
-
Brakes (front/rear)"V" TEKTRO alloy /"V" TEKTRO alloy
-
Wheels20" / 16"
-
RimsHJC alloy
-
HubsNOVATEC alloy
-
Hub width (front/rear)74 / 74 mm // 2.9 / 2.9 in
-
Preparation for using flat screws (front/ rear)No / No
-
BearingsIndustrial
-
Quick-release levers (front/rear)Yes / Yes
-
Tyres (front/rear)INNOVA 20x1,75 / 16x1,75
-
Max. inflation (front/rear)4,6 bar / 4,6 bar
-
Preparation for bottle holder2x
-
KickstandYedoo central, integrated
-
Reflective elementsNo
-
Dimensions
-
-
[1] Length145 cm / 57.1 in
-
[2] Footboard40 cm / 15.7 in
-
[3] Handlebar height92 - 100 cm / 36.2 - 39.4 in
-
[4] Width of handlebars64 cm / 25.2 in
-
[5] Ride height (higher/lower position)*4,5 / 6,5 cm // 1.8 / 2.6 in
-
[6] Distance between footboard and ground (higher/lower position)*8 / 10 cm // 3.2 / 3.9 in
-
[7] Room for rider59 cm / 23.2 in
-
*Tolerance +-0.2 cm
-
Documents, standards and certificates
-
Manual
-
NormsČSN EN 14619
ČSN EN 14619
The regulation determines safety and functional requirements for wheel sport equipment particularly scooters aimed for users between 35kg and 100kg. The regulation examines riding properties, strength of construction, safety fixing components, shelf life and correct functionality of individual components such as brakes, bearings, rims, cases, pedals, etc. The regulation also introduces guidelines for preparation of user´s manuals, installation and treatment of these products.
-
Testing authoritySZÚ, s. p.
-
-
We don’t just brag that our products have performance and quality built to last – we’ve proved it by extending the full warranty to 3 YEARS! More
-
Yedoo frames are protected by registered EU industrial designs. The Yedoo brand, along with the trade names of each model, are trademark protected.
-
Change of technical parameters and components reserved.
-
Warnings and Safety Information:
For riding on roads and for riding in the dark, you must retrofit the scooter with safety features (lights, reflectors, etc.) in accordance with the regulations in force in your country. Follow the rules of the road, the principles of safe driving and wear personal protective equipment (helmet, cycling gloves, knee and elbow protectors, sturdy shoes, etc.). More information can be found in the Yedoo Manual (see download above). -
Manufacturer:
INTREA-PIKO, spol. s.r.o. | Radlická 80 | 150 00 Prague 5 | info@yedoo.cz
Manual_Yedoo_Adult_scooters_2020_2016_1616_web.pdf
Technical and construction features
Originally designed steel frame
The classic three-pipe frame has several advantages. In addition to optimum riding performance it also ensures that the scooters are easy to carry.
Adjustable handlebars
You can adjust the height of the handlebar easily and quickly using one hex key.
Grips with double fixation
Ergonomically shaped grips with a pleasant surface that fit well into the hand ensure comfort even during long rides.
Due to double fixation, they stay firmly put in the position you set up.
Anti-slip footboard
We have given the wide spacious footboard a moulded Yedoo logo and an anti-slip surface, which will ensure a safe ride for you even in more demanding conditions such as wet weather, mud or fallen leaves.
Integrated stand
The originally designed folding stand is fully integrated in the structure of the frame and in the folded position it has a minimum impact on smooth passing of the scooter through the terrain.
The scooter is easy and stable to park, similarly to a motorbike.
Safe brakes
Brakes with quality brake pads are the basic element of the general safety and riding comfort of every proper scooter.
Adjustable footboard height
The dual-position rear fork enables changing the height of the footboard and adjusting the scooter to the riding style or the riding surface. Smooth road or tougher terrain? That's up to you.
